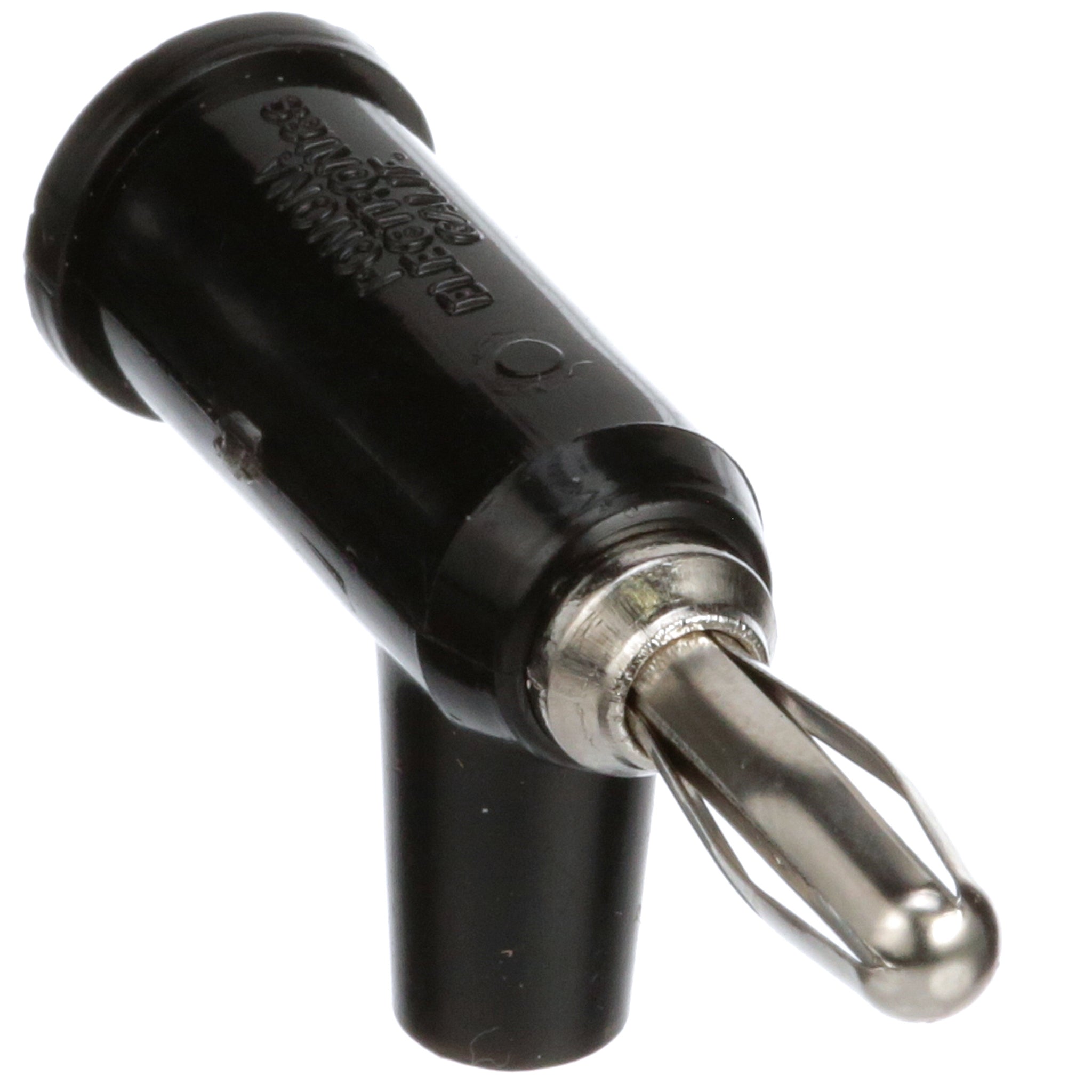

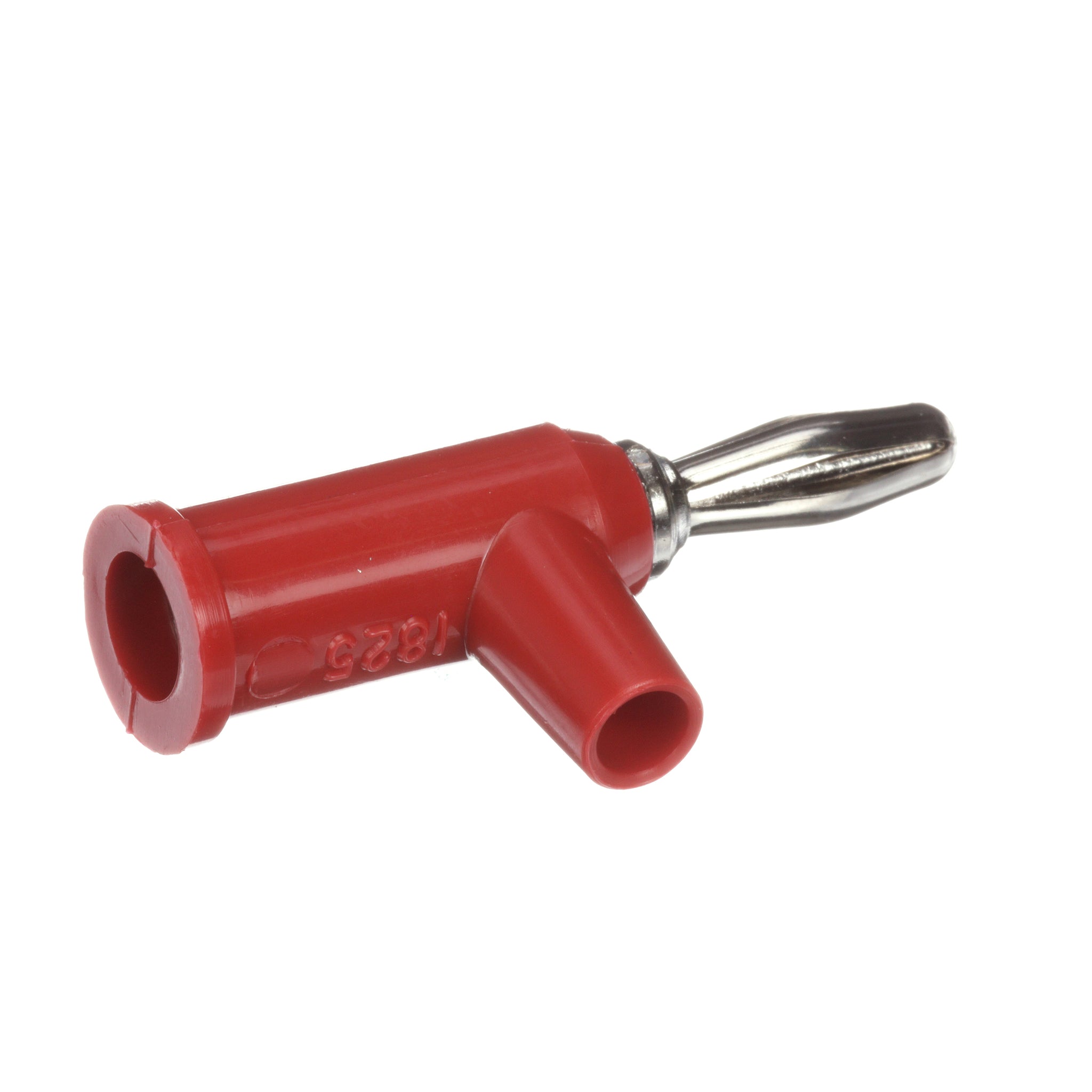

Pomona Banana Jack 15A, Black or Red

$5.00
Unit price per

Standard Banana Jack, Solderless and Stackable, 5000 VRMS (Max.), 15 A, +122 F

-Banana Jack, 15A, Nickel Plated with ABS Insulation,

Designed to fit on the end of any 22AWG to 18AWG wire
Cross-hole wire entry fits up to .12" (3mm) diameter
Available with tarnish-resistant nickel or gold plating for very low contact resistance
Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver
Fits standard panel and binding post banana jacks .161" to .166" (4.00mm to 4.2mm) diameter

Ratings:

Voltage: Hands-free testing in controlled voltage environments: 5000Vrms Max. For CE Compliance: not intended for hand-held use at voltages above 33Vrms/70Vdc

Current: 15 Amps

Maximum Operating Temperature: +122 F (+50 C)

Materials

Banana Jack: Beryllium Copper, Gold Plated

Banana Plug Body - Brass, Nickel Plated

Spring Beryllium Copper, Nickel Plated

Insulation: ABS

Set Screw: Steel, Zinc Plated, 8-32 Single Slot
